| Description | Model | Configuration | Scanner |
| RGB15W full colour Animation laser light | LY-RGBW015 | R:4000mw/638nm G:4000mw/520nm B:8000nm/447nm | Scanner 40KPPS |
| RGB15W full colour Animation laser light | LY-RGBW10 | R:3000mw/638nm G:3000mw/520nm B:5000nm/447nm | Scanner 40KPPS |
(Green)G20W SD Card Green Animatiom laser light | LY-SDG020 | G20w/532nm | Scanner 40KPPS |
| (Green)G15W SD Card Green Animatiom laser light | LY-SDG015 | G15w/520nm | Scanner 40KPPS |
Rated frequency: 50 ~ 60Hz
Rated power: 600W
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects)
Modulation signal: TTL modulation (analog modulation)
Scanning System: Galvanometer Scan 40KPPS
Scanning angle: positive and negative 25 degrees

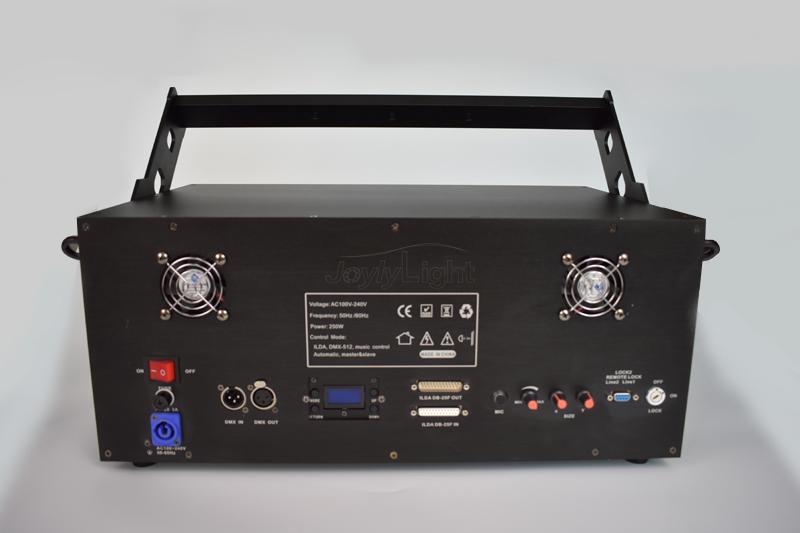

Control mode: DMX512, voice control, self-propelled, computer ILDA interface
Control channel: 12 DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch.
Cooling system: fan forced cooling

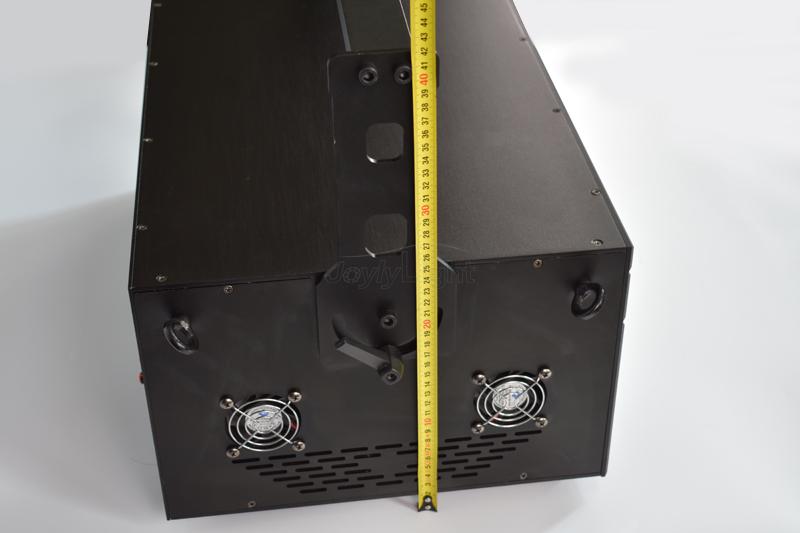

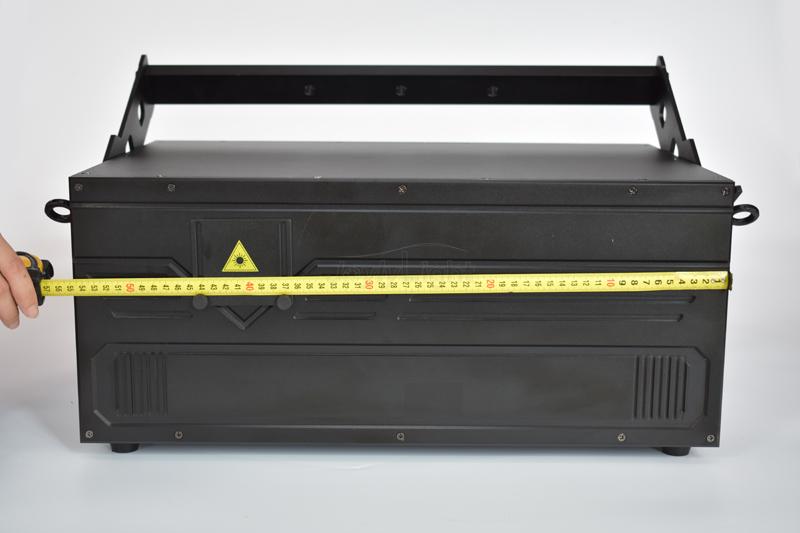

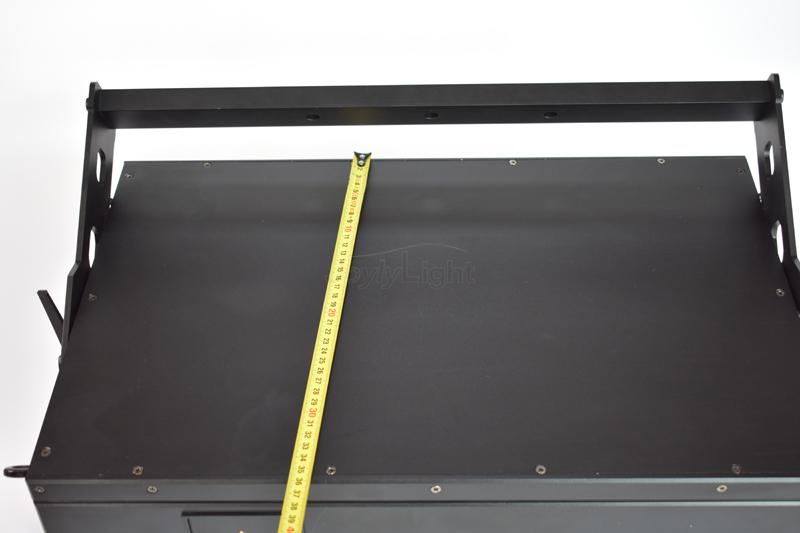

Lamp size: 62*40*38/ CM
Package Size: One Pack One Flight Case: 67*50*48CM
Net weight: 30KG Gross weight: 45 KG
